JIANKE MA25-5II 5 Axis Double Spindle Swiss CNC Lathe with Internal Oil Cooling Electric Spindle and Rotary Guide Bush Mode
Product Overview

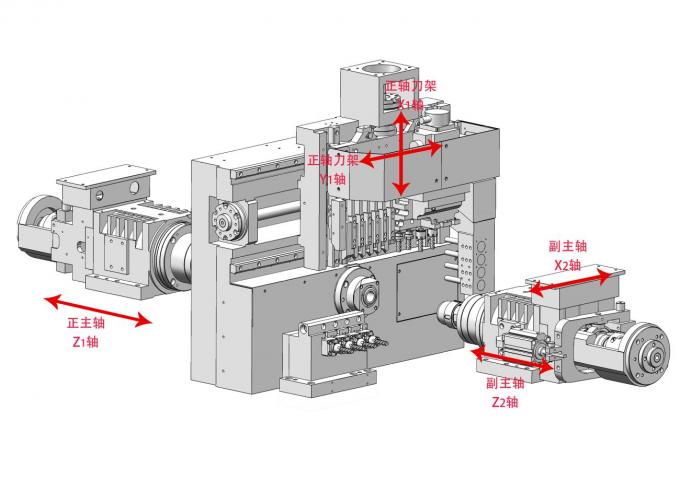

MA25-5Ⅱ 5-axis Double Spindle Swiss CNC Lathe
Key Features
- Dual Operation Modes: Supports both rotary guide bush and without guide bush modes. Rotary guide bush mode processes slender bars with single feeding length of 195-200mm; without guide bush mode handles short workpieces with length to diameter ratio less than 1:2.5.
- Advanced Spindle Technology: Features Japanese oil-cooled electric spindle technology with NSK bearings for enhanced rigidity, torque, and processing accuracy stability.
- Efficient Chip Management: Integrated scrap collection tank with 250L cutting oil tank featuring multi-channel filter screens and oil return baffles for optimal oil-chip separation.
- Flexible Workpiece Ejection: Front discharge for parts under 90mm via built-in conveyor belt; rear discharge through sub-spindle for longer parts.
- Modular Expansion: Standard configuration includes 2 ER11 + 2 ER16 side rotary power tools with expandable modular functions.

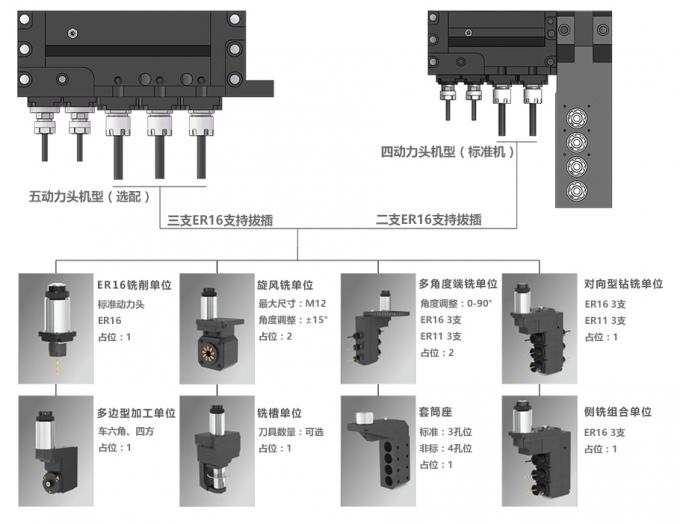

Demonstration of plug-type expansion functions. Contact JIANKE for additional module requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Control System | Taiwan SYNTEC Syntec220TB |
| Control Channels | Dual channel |
| Minimum Setting Unit | 0.001mm |
| Max Processing Diameter | 26 mm |
| Max Single Feeding Length | Rotary guide bush: 200mm Without guide bush: 1:2.5D (Dia:Length) |
| Main Spindle Max Drilling | Axial: Φ10mm |
| Main Spindle Max Tapping | Axial: M8 |
| Rotary Tools Max Drilling | Radial: Φ8mm |
| Rotary Tools Max Tapping | Radial: M6 |
| Sub Spindle Max Drilling | Axial: Φ8mm |
| Sub Spindle Max Tapping | Axial: M6 |
| Tool Base Arrangement | Upper row tool base |
| Main Spindle O.D. Tools | 6 pieces (1*16X16mm + 5*12X12) |
| Main Spindle Side Rotary Tools | 4 pieces (2*ER11 + 2*ER16) |
| Main Spindle End Face Tools | 4 pieces (4*ER11/ER16) |
| Sub Spindle End Face Tools | 4 pieces (4*ER16) |
| Spindle Type | Internal oil cooling electric spindle |
| Spindle Speed | 10000 rpm/min |
| Spindle Indexing | 0.001° |
| Through Hole Diameter | 26mm |
| Spindle Height | 1020mm |
| Main Spindle Power | 2.2kw/3.7kw (Rated/Max) |
| Sub Spindle Power | 2.2kw/3.7kw (Rated/Max) |
| Side Rotary Tools Power | 1.0kw |
| Side Rotary Tools Speed | ER11: 10000rpm/min ER16: 6000rpm/min |
| Moving Axis | 5 axis (X1,Y1,Z1,X2,Z2) |
| Rapid Feeding Speed | X1: 24m/min Y1,Z1,X2,Z2: 32m/min |
| Moving Axis Motor Power | 1.0kw |
| Parts Collection | Short parts: Belt conveyor Long parts: Rear ejection |
| Power Capacity | 22kw |
| Air Pressure | 0.4MPa以上 |
| Oil Tank Capacity | 175L |
| Machine Dimensions | 2.65m * 1.4m * 1.75m |
| Machine Weight | 3050KG |
Standard Accessories
| No. | Name | Quantity | Note |
|---|---|---|---|
| 1 | Protective cover | 1 set | |
| 2 | Nameplate | 1 piece | |
| 3 | Spindle | 2 units | Main and Sub spindle |
| 4 | Knife holder for turning tools | 1 set | 1*16X16mm + 5*12X12 |
| 5 | Side rotary tools base | 1 set | 2*ER11 + 2*ER16 |
| 6 | Main spindle end face drilling tools base | 1 set | 4 pieces ER11/ER16 |
| 7 | Sub spindle end face drilling tools base | 1 set | 4* ER11/ER16 (upgradable to end face rotary tools) |
| 8 | Live rotary guide bush | 1 set | |
| 9 | Pneumatic system | 1 set | |
| 10 | Cooling system | 1 set | |
| 11 | Lubricating system | 1 set | |
| 12 | Electrical system | 1 set | |
| 13 | Parts receiver/collector | 1 set | Standard with front ejector/belt conveyor |
| 14 | Lathe lighting | 1 set | |
| 15 | Three color alarm light | 1 set | Three color lights + Beep alarm |
| 16 | Tool box | 1 set | Including wrenches, screwdrivers, oil kettles |
| 17 | Transformer | 1 unit | |
| 18 | Manual book | 1 set | Lathe manuals, System book, Spare parts list, Quality testing report |
Optional Equipment
| No. | Name | Functions | Note |
|---|---|---|---|
| 1 | Bar feeder | Automatic feeding/refueling for long bar materials; automated production | Recommended essential |
| 2 | High pressure pump | Assists with chip breakage, chip removal, erosion; extends tool life; improves accuracy | Select according to demand |
| 3 | Oil mist collector | Absorbs atomized oil mist; maintains workshop environment | Select according to demand (mandatory with high pressure pump) |
| 4 | Chip conveyor | Chain type conveyor removes chips; reduces manual chip removal workload | Select according to demand |
| 5 | Plug type modules | End face rotary tools, Angle rotary tools, Thread whirling, Hobbing base, Saw blade base, Boring tool base | Contact JIANKE for specific requirements |
| 6 | Long parts discharge from backwards | Ejects long parts from rear of sub spindle | Select according to demand |
Due to different options/configurations, the above are regular configurations. Contact JIANKE for special requirements.
Main Component Brands
| Component | Origin and Brand |
|---|---|
| Operation System | SYNTEC (Made in TAIWAN) |
| Spindle and Driver | Oil cooling electric spindle / Mitsubishi driver |
| Bearing | Japan NSK |
| Guide rail | Japan THK / Taiwan Hiwin / Taiwan PMI |
| Guide screw | Japan THK / Taiwan Hiwin / Taiwan PMI |
| Servo Motor | SYNTEC (Made in TAIWAN) |
| Motor driver | SYNTEC (Made in TAIWAN) |
| Electrical components | France Schneider |
| Lubricant system | Japan Herg |
| Relay | Japan Omron |
| Stroke switch | Japan Omron |
| Magnetic valve | Taiwan Airtag |
Raw Material Requirements
- Recommended use of polished/precision drawn materials with single bar length ≤ 3M
- Material diameter tolerance consistency within ± 0.02mm
- Material roundness tolerance consistency within 0.005-0.01mm
- Material straightness within 0.35mm/m
- All bar materials require chamfering at both ends
- Large-diameter and irregular materials require tail turning to match bar feeder collet
- Prior declaration required for material hardness above HRC28 degrees
Material tolerance requirements can be adjusted based on actual product accuracy requirements.
Quality Assurance & Technical Support
- Warranty: One year from final acceptance date. Free service for normal use damage. Material fees only for improper use within first year.
- Pre-sales Service: Free basic training for technical personnel at JIANKE factory.
- In-sales Service: Free basic training at buyer's factory upon equipment arrival.
- After-sales Service: 24-hour response for on-site resolution requirements. Remote guidance available for minor issues.
- Technical Support: Remote technical guidance for complex parts. Reasonable charges for programming and debugging services.
